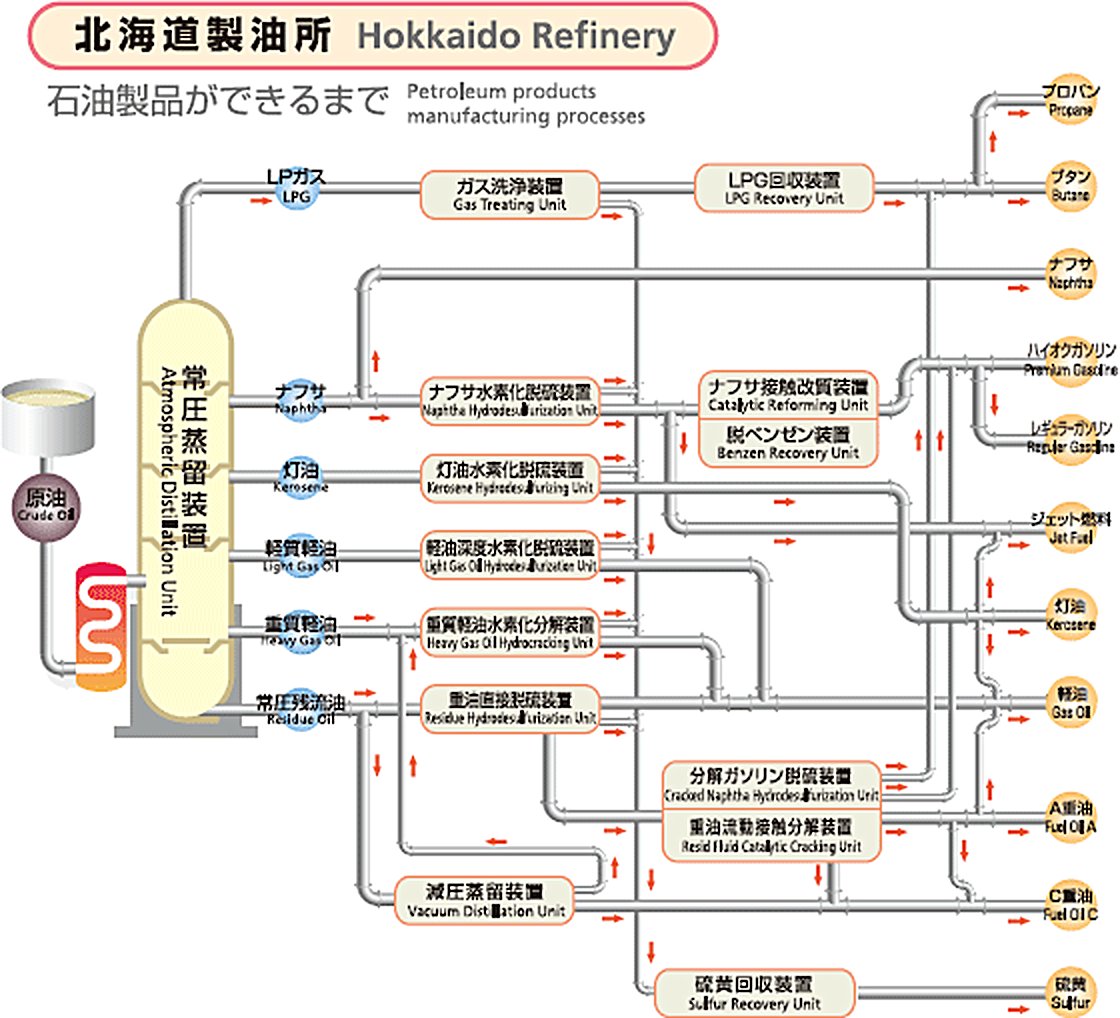

Hokkaido Refinery | Petroleum product manufacturing flow

Hokkaido Refinery has 13 refining units, and crude oil transported mainly from the Middle East by large tankers is turned into petroleum products through these refining units. It is equipped with a cracking unit that produces kerosene and diesel for heating, increasing the production ratio of petroleum products, which are in high demand. The amount of crude oil processed in the atmospheric distillation unit is 140,000 barrels per day, and it takes one day to turn it into petroleum products.



Main refining equipment

• As of September 16, 2024

Atmospheric distillation quipment	140,000 barrels/day 22,260 kL/day)
Vacuum distillation equipment	24,000 barrels/day 3,800 kL/day)
Naphtha hydrodesulfurization equipment	27,000 barrels/day (4,300 kL/day)
Catalytic reformer	18,000 barrels/day (2,900 kL/day)
Debenzene equipment	14,500 barrels/day (2,300 kL/day)
Kerosene hydrodesulfurization equipment	36,500 barrels/day 5,800 kL/day)
Light oil deep hydrodesulfurization equipment	27,000 barrels/day (4,290 kL/day)
Heavy gas oil hydrocracker	16,500 barrels/day (2,600 kL/day)
Heavy oil direct desulfurization equipment	42,000 barrels/day (6,680 kL/day)
Heavy oil fluid catalytic cracking equipment	33,000 barrels/day (5,250 kL/day)
Cracking gasoline desulfurization equipment	17,600 barrels/day (2,800 kL/day)
LPG purification equipment	734 t/day
Sulfur recovery quipment	395 t/day



Oil storage equipment

crude oil tank	13 units
fuel tank	72 units
sulfur tank	2 groups
LPG tank	12 units



Utility equipment

Boiler	5 units	425 t/hour
Generator	3 units	76,700kW



Receiving and shipping equipment

Crude oil reception

open ocean sea berth	1 unit	300,000 DWT
Inner Port West Pier	1 unit	70,000 DWT



Product receipt and shipment

inner harbor pier	7 units	2,500～6,000DWT
Lorry shipping equipment	56 stations
