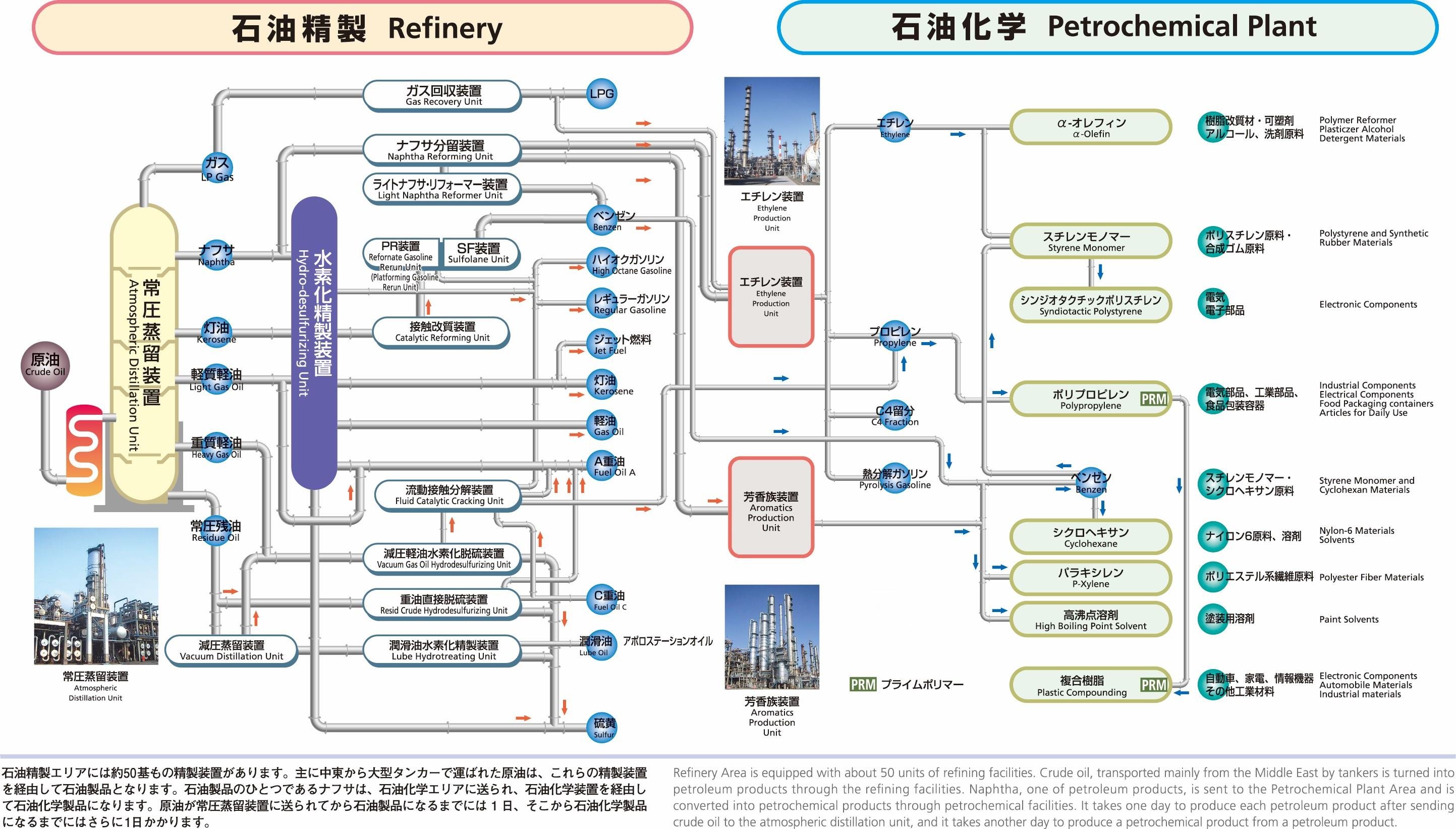

Chiba Complex | Manufacturing flow

Refinery has around 50 refining units. Crude oil, mainly transported by large tankers from the Middle East, passes through these refining units to become petroleum products. One of the petroleum products, naphtha, is sent to a petrochemical plant and turned into petrochemicals through petrochemical units. It takes one day for crude oil to be turned into petroleum products after being sent to the atmospheric distillation unit, and another day for it to be turned into petrochemicals.



Major refining facilities (Refinery)

• As of September 16, 2024

Atmospheric distillation equipment	1 unit	195,000 barrels per day
Fluid catalytic cracker	1 unit	45,000 barrels/day
Catalytic reformer	1 unit	17,000 barrels/day
Heavy oil hydrodesulfurization equipment	1 unit	40,000 barrels/day
Vacuum distillation equipment	1 unit	66,000 barrels/day
Lubricating oil hydrorefining equipment	1 unit	11,600 barrels/day
Lubricating oil hydrodewaxing equipment	1 unit	2,000 barrels/day
Hydrogen production equipment	1 unit	​980,000Nm3 /day
aromatic extraction equipment	1 unit	8,200 barrels/day
Kerosene deep desulfurization equipment	1 unit	60,000 barrels/day
Light naphtha reformer equipment	1 unit	250,000 t/year



Main manufacturing equipment (petrochemical plant)

Ethylene production equipment		374,000 t/year
Aromatic production equipment	paraxylene	265,000 t/year
	high boiling point solvent	20,000t/year
Styrene monomer production equipment		210,000 t/year
α-olefin production equipment		58,000 t/year
Cyclohexane production equipment		115,000 t/year
Polypropylene production equipment *1		286,000 t/year
Syndiotactic polystyrene production equipment		9,200 t/year
Composite resin manufacturing factory *1		54,100 t/year

*1 Prime Polymer Co., Ltd.



Utility equipment

Refinery

Steam equipment (boiler including CO boiler)		5 units	1,060 t/hour
Private power generation equipment		6 units	87,100kWh
utility equipment	industrial water	-	60,000t/day
	sea water	-	54,000m3/hour



Petrochemical factory

Steam equipment	1 boiler	210 t/hour
Private power generation equipment	2 groups	95,000kWh
Water equipment industrial water	-	22,780t/day



Environmental protection equipment

Refinery

Flue gas desulfurization equipment	1 unit	270,000Nm3 /hour
electrostatic precipitator	2 groups	793,000Nm3 /hour
Comprehensive wastewater treatment equipment (activated sludge treatment equipment)	1 unit	8,160t/day



Petrochemical factory

Flue gas denitrification equipment  (BTX, ethylene, gas turbine boiler)	1,470,000Nm3 /hour
Comprehensive wastewater treatment equipment	9,000t/day







Oil storage equipment

Refinery

crude oil tank	27 units
Petroleum semi-finished products/product tanks	147 units
LPG tank etc.	32 units
Lubricating oil semi-finished products/product tanks	134 units
lubricant additive tank	27 units
chemical tank	25 units



Petrochemical factory

Raw material/semi-finished product tank	86 units	119,200kL
High pressure gas tank	16 units	10,700 tons
