Aichi Complex | Manufacturing flow

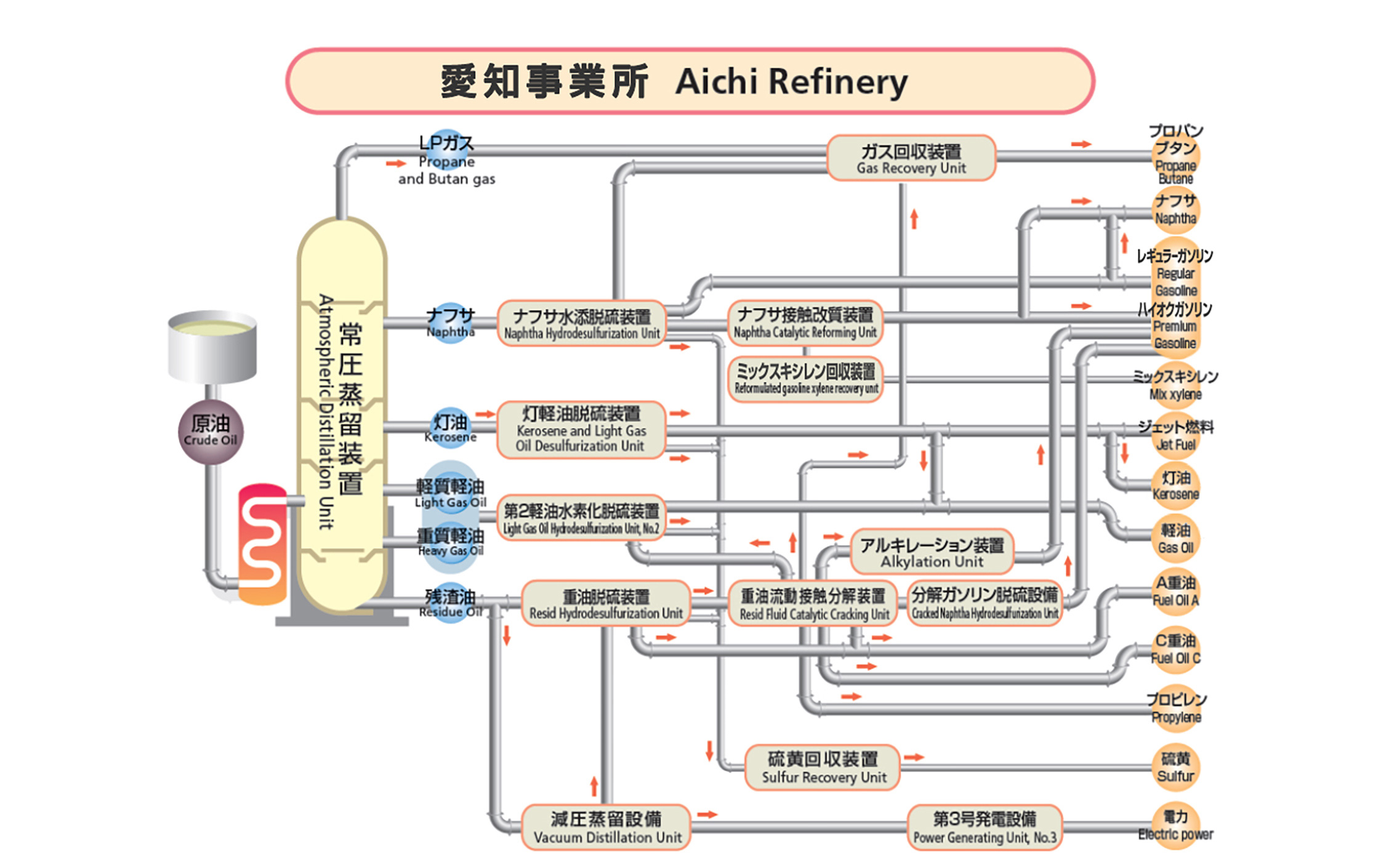

Crude oil shipped from the Middle East and other parts of the world is separated into LPG, naphtha, kerosene, heavy oil, and other components using differences in boiling points in atmospheric distillation units called topper. These semi-finished products are further processed into products through desulfurization and blending. The complex is characterized by its extensive secondary equipment, including an alkylation unit that produces high-grade gasoline base stock, a heavy oil fluid catalytic cracking unit that produces gasoline and diesel from heavy oil, and a cracked gasoline desulfurization facility that produces sulfur-free gasoline. These units are centrally controlled by computers, realizing an "optimal production system."



Main processing equipment

• As of September 16, 2024

Atmospheric distillation equipment	165,000 barrels/day (26,230kL/day)
Naphtha hydrodesulfurization equipment	30,000 barrels/day (4,770kL/day)
Naphtha catalytic reformer	20,000 barrels/day (3,180kL/day)
Heavy oil fluid catalytic cracking equipment	50,000 barrels/day (7,950kL/day)
alkylation equipment	10,000 barrels/day (1,590kL/day)
Cracking gasoline desulfurization equipment	15,800 barrels/day (2,510kL/day)
Kerosene and diesel oil desulfurization equipment	49,000 barrels/day (7,790kL/day)
No. 2 gas oil hydrodesulfurization equipment	34,000 barrels/day (5,410kL/day)
Heavy oil direct desulfurization equipment	60,000 barrels/day (9,540kL/day)
Vacuum distillation equipment	16,000 barrels/day (2,540kL/day)
gas recovery equipment	750t/day
sulfur recovery equipment	436t/day
Mixed xylene recovery equipment	10,000 barrels/day (1,590kL/day)
Aromatic recovery equipment	21,000 barrels/day (3,360kL/day)
Paraxylene manufacturing equipment	400,000t/year
Toluene disproportionation equipment	8,800 barrels/day (1,408kL/day)

Oil storage equipment

crude oil tank	25 units
fuel tank	111 units
LPG tank	22 units
lubricating oil tank	12 units
Others



power equipment

boiler	6 units	970t/h
Generator	5 units	122,000kw



Receiving and shipping equipment

Crude oil reception

sea berth	1 unit	310,000DWT
2nd pier	1 unit	100,000DWT



Product receipt and shipment

2nd pier	1 unit	Up to 50,000DWT
J-7 Pier	1 unit	Up to 99,999DWT
coastal pier	20 units	800～9,999DWT
Lorry shipping equipment	75 stations



No. 3 power generation equipment

No. 3 power generation equipment	1 unit	252,000kW
boiler	1 unit	830t/h
