Site

TPPI Petrochemical Facility | Source: TubanPetro

TPPI’s integrated refinery–petrochemical complex at Jenu, Tuban, East Java, is centered on processing condensate and naphtha into fuels and aromatics. The plant originally came onstream in the mid‑2000s (commercial operations from 2006), and since then it has seen repeated stop–start operation and a major revamp program under Pertamina’s refinery arm, Kilang Pertamina Internasional (KPI).

Tuban Petrochemical Complex Flow Diagram - Original Design

Processes & Technologies

• Condensate Splitting:
  Splits condensate into naphtha, kerosene, diesel, and other fractions with a processing capacity of 100,000 barrels of feedstock per day.

• Aromatics Complex:
  Utilizes advanced catalytic reforming and extraction technologies to convert naphtha into high-value aromatic products.

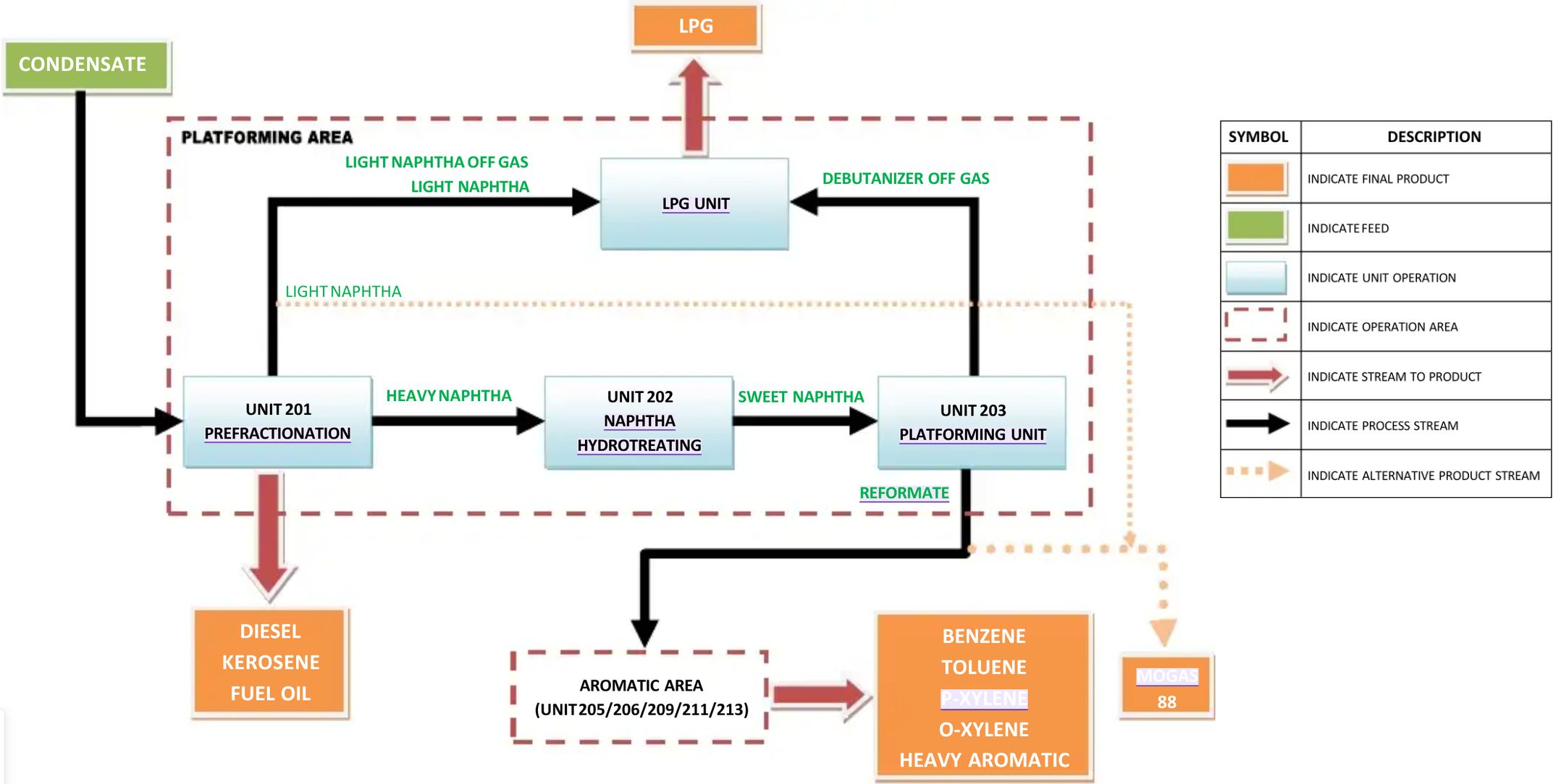

Platforming Area Block Flow Diagram

• Product Flexibility:
  The plant is designed for dual-mode operation: it can switch between producing gasoline and aromatics (notably paraxylene) depending on market demand and government directives.

• Aromatics Expansion Project:
  The site’s original design included 500,000 tonnes/year (t/yr) of paraxylene and 400,000 tons/year of benzene, toluene, and orthoxylene, but recent expansions have increased these capacities. A recent $180 million expansion project was initiated to increase output capacity from 600,000 to 780,000 t/yr (+30%) for paraxylene and further boosting other aromatics and fuel products such as expanding benzene production capacity from 360,000 t/yr to 490,000 t/yr. The project also expanded an upstream platforming unit, raising reforming capacity by 5,000-10,000 b/d to 55,000 b/d.  following the expansion. The project was completed in Jan 2024.

Feedstock

Primary Feedstocks are Condensate and Naphtha, processed in the refinery’s condensate splitter and naphtha processing units. Following completion of the aromatics expansion project, TPPI needs to buy heavy naphtha or additional condensate to operate the facility at full capacity.

Production Capacities

Polypropylene Plant Project

The TPPI polypropylene (PP) plant has been licensed to use W. R. Grace & Co.’s UNIPOL^® PP technology, and as of mid‑2026, the project is still in the FID/early implementation window; there is no operating PP plant at TPPI yet.

References

1. Pertamina / PT Kilang Pertamina Internasional — Press Release: Indonesia’s Pertamina aims to finish revamping TPPI petrochemical plant in Q4 (Sep 25, 2023)
2. ASEAN Centre for Energy — News: Pertamina’s TPPI kicks off $180m petrochemical plant expansion (accessed Jun 2026)
3. Argus Media — Market News: Indonesia’s TPPI to expand Tuban aromatics unit (Sep 28, 2020)
4. Hydrocarbon Engineering — News: PT KPI and PT TPPI sign raw material processing agreement (Jan 23, 2022)
5. NS Energy — News: Pertamina restarts TPPI Tuban refinery in East Java province (Nov 10, 2013)
6. Presidential Secretariat of the Republic of Indonesia — Press Release: President Jokowi Orders Completion of TPPI Refinery in Three Years (Dec 22, 2019)
7. Tuban Petrochemical Industries (TubanPetro) — Company Profile: PT Trans-Pacific Petrochemical Indotama (page updated 2022; accessed Jun 2026)
8. LinkedIn — Company Page: TPPI (Trans-Pacific Petrochemical Indotama) (profile last updated 2025; accessed Jun 2026)
9. Oil & Gas Journal — News: [Indonesia’s TPPI to increase p-xylene capacity in USD180-million expansion] (mirrored in industry news aggregators, based on Argus reporting) (2020)
10. Hydrocarbon Processing / Honeywell UOP — Technology Note: Aromatics process technologies overview (accessed Jun 2026)
11. Student / Technical Reports (Indonesia) — TPPI Tuban process descriptions, in Bahasa Indonesia: Scribd — Petrochemical Process Flow Overview (Block Diagram TPPI): Petrochemical Process Flow Overview | TPPI (uploaded 2014; accessed Jun 2026)
12. Scribd — Tentang TPPI dan Struktur Organisasi: Tentang TPPI dan Struktur Organisasi (uploaded 2025; accessed Jun 2026)
13. Scribd — BAB IV – PT TPPI (Kuliah Kerja Lapangan / internship report): 04 BAB IV (uploaded 2025; accessed Jun 2026)
14. Local Government Archive — Environmental Approval: Dinas Perpustakaan dan Kearsipan Kabupaten Tuban — PT. Trans Pacific Petro Chemical Indotama TPPI (archival record; accessed Jun 2026)
15. Samsung Engineering — Company News: Samsung Engineering wins FEED order for petrochemical plant in Indonesia (Dec 14, 2021)
16. Viva.co.id — Indonesian News: Menang Tender Pertamina, Hyundai Engineering Siap Garap Proyek TPPI (Oct 2020)
17. Bisnis Indonesia — Indonesian News: Proyek Kilang TPPI Mundur ke 2023 (Nov 27, 2021)
18. ASEAN Centre for Energy / Other Indonesian media about TPPI olefin project: Bagaimana Nasib Pengembangan Kilang TPPI di Tengah Badai Corona (May 27, 2020)
